Battery for linear actuator MPP-BT
Battery for linear actuator MPP-BT
Battery for linear actuator MPP-BT

Battery for linear actuator MPP-BT

En stock
€149.17
Tax excluded

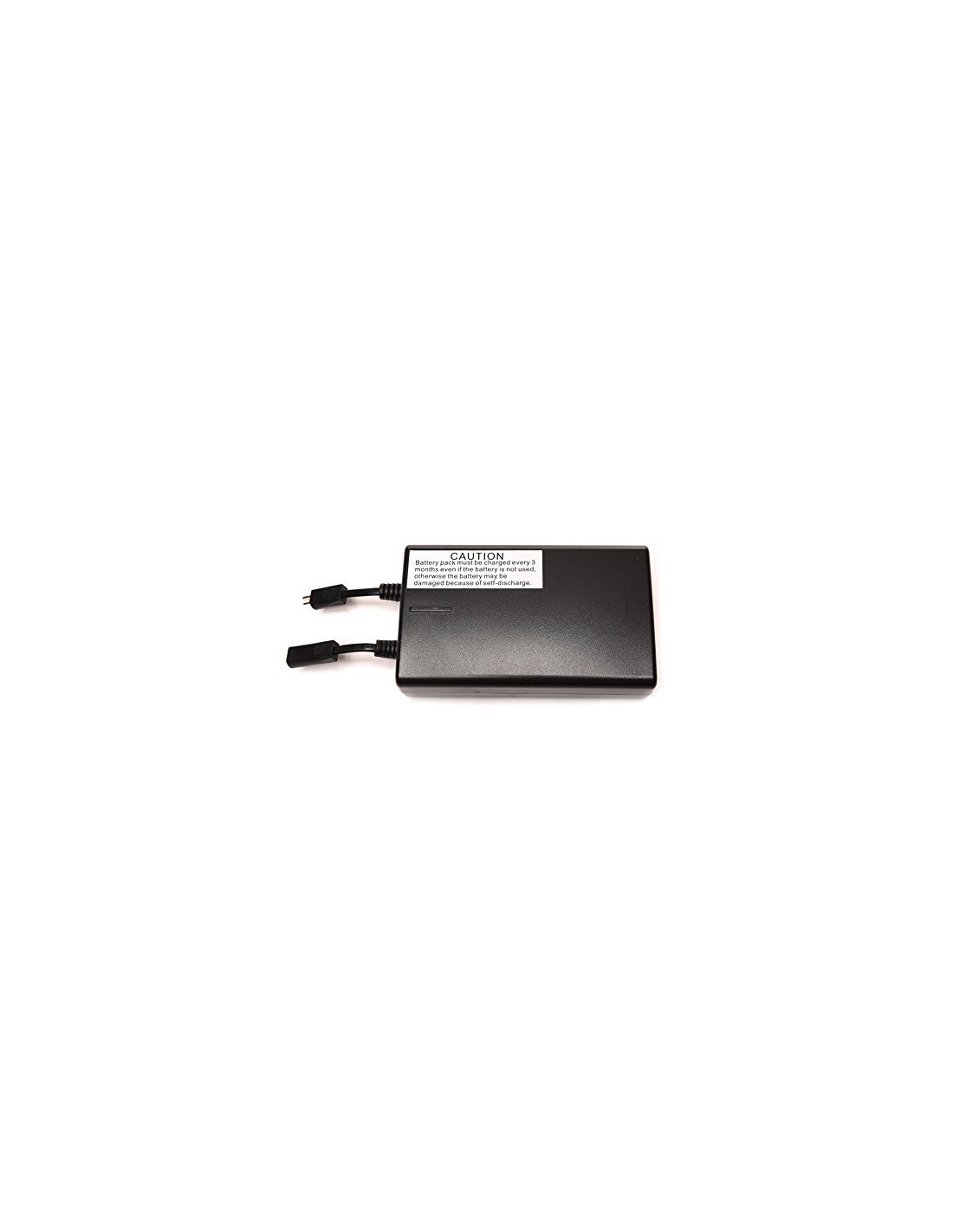

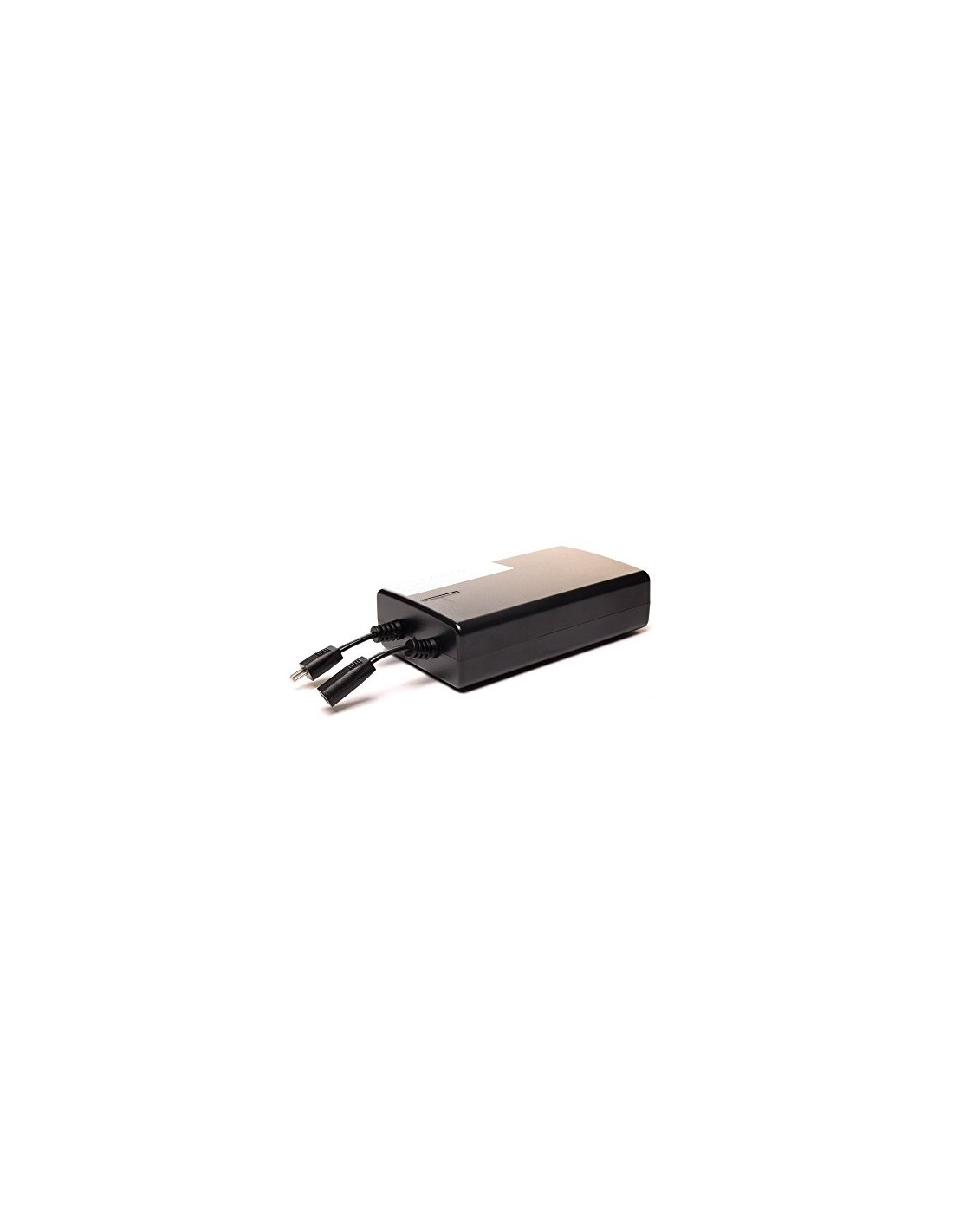

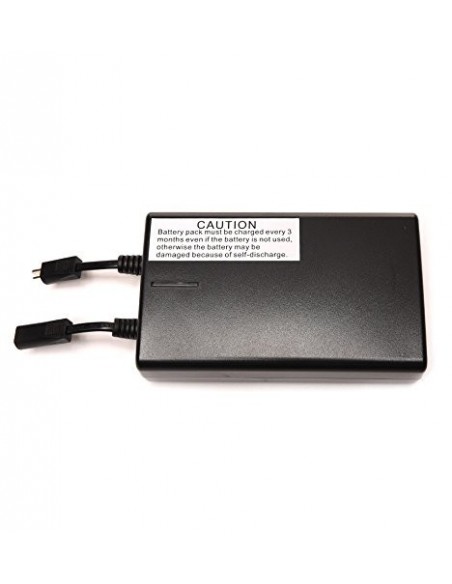

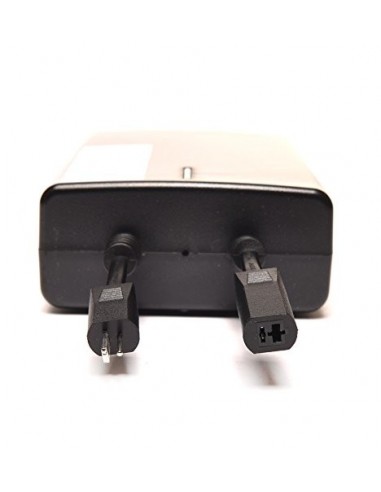

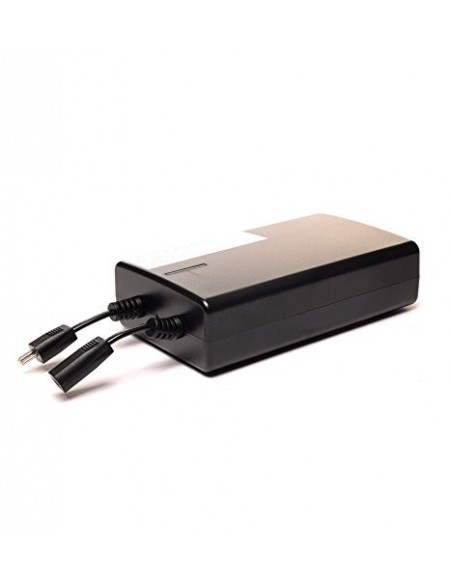

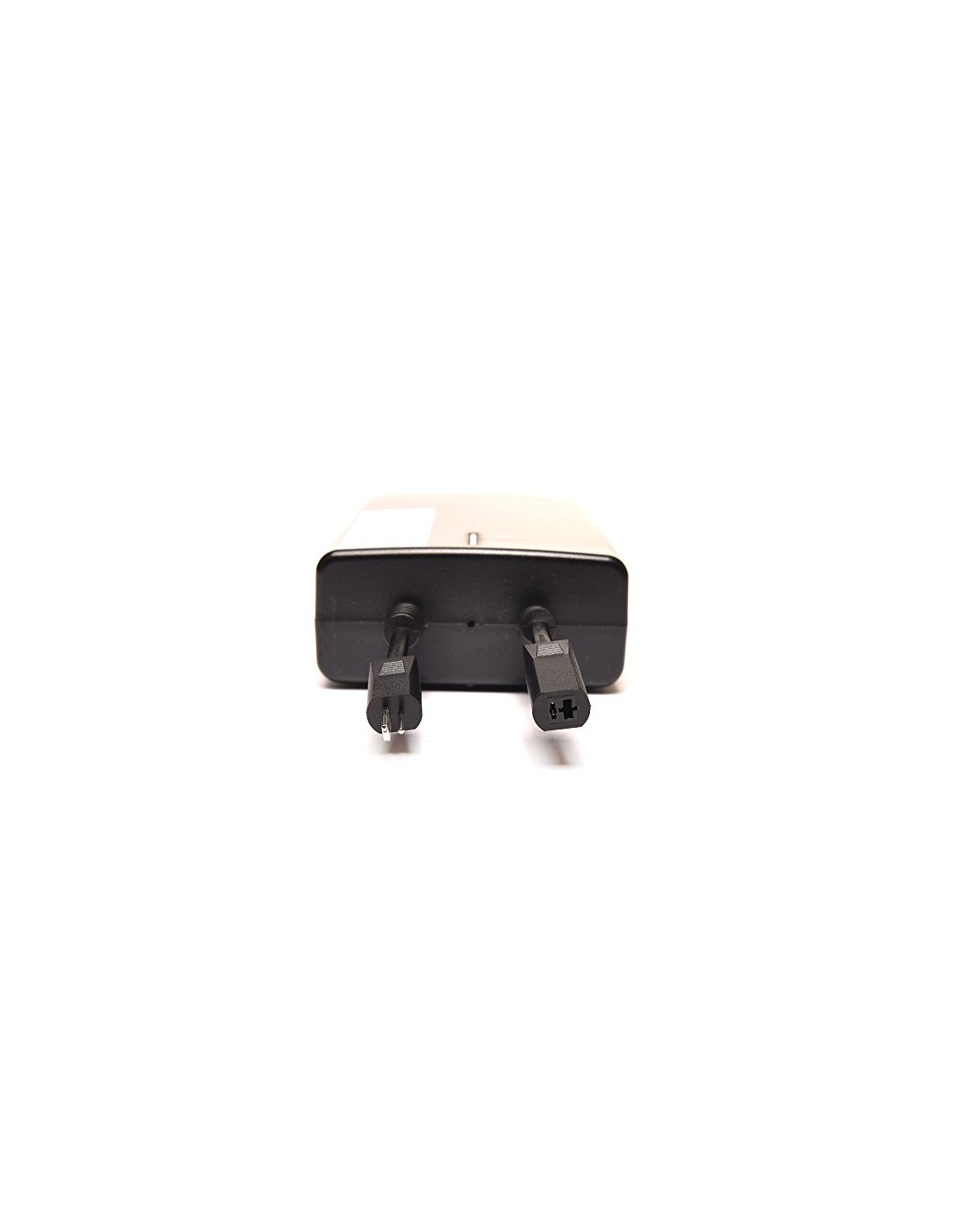

The MPP-BT is a portable power source consisting
of 7 standard 18650 lithium batteries and a
control board.
Safety measures have been designed to protect
against overcharge, over discharge, over current
and short circuit.
The MPP-BT is an ideal power supply
for various portable applications.

Compatible with the following 24 volt actuators MPP-MD, MPP-EC, MPP-ECH, MPP-WPC, ITEX, IQ



Battery allowing your application to operate without an electrical outlet,

This kit will allow you to make autonomous any 24V electric actuator, Input: 24V-32V, Output 5A, 1800mAH 45w.

This high quality battery allows 300 cycles once charged.

Input voltage: 24 ~ 32V DC
- Input current: 0.6 ~ 3.0A
- Output voltage: 21 ~ 29V DC - Output current: 3.0A
- Nominal voltage: 25.2A
- Over current protection: 5A
- Short circuit protection
- Capacity: 1800mAH
- Color: Black
- Charge with switch mode power supply
- Ambient operation temperature: 0°C ~ +40°C - Storage temperature: 0°C ~ +40°C
- Storage humidity: 20% ~ 85%
