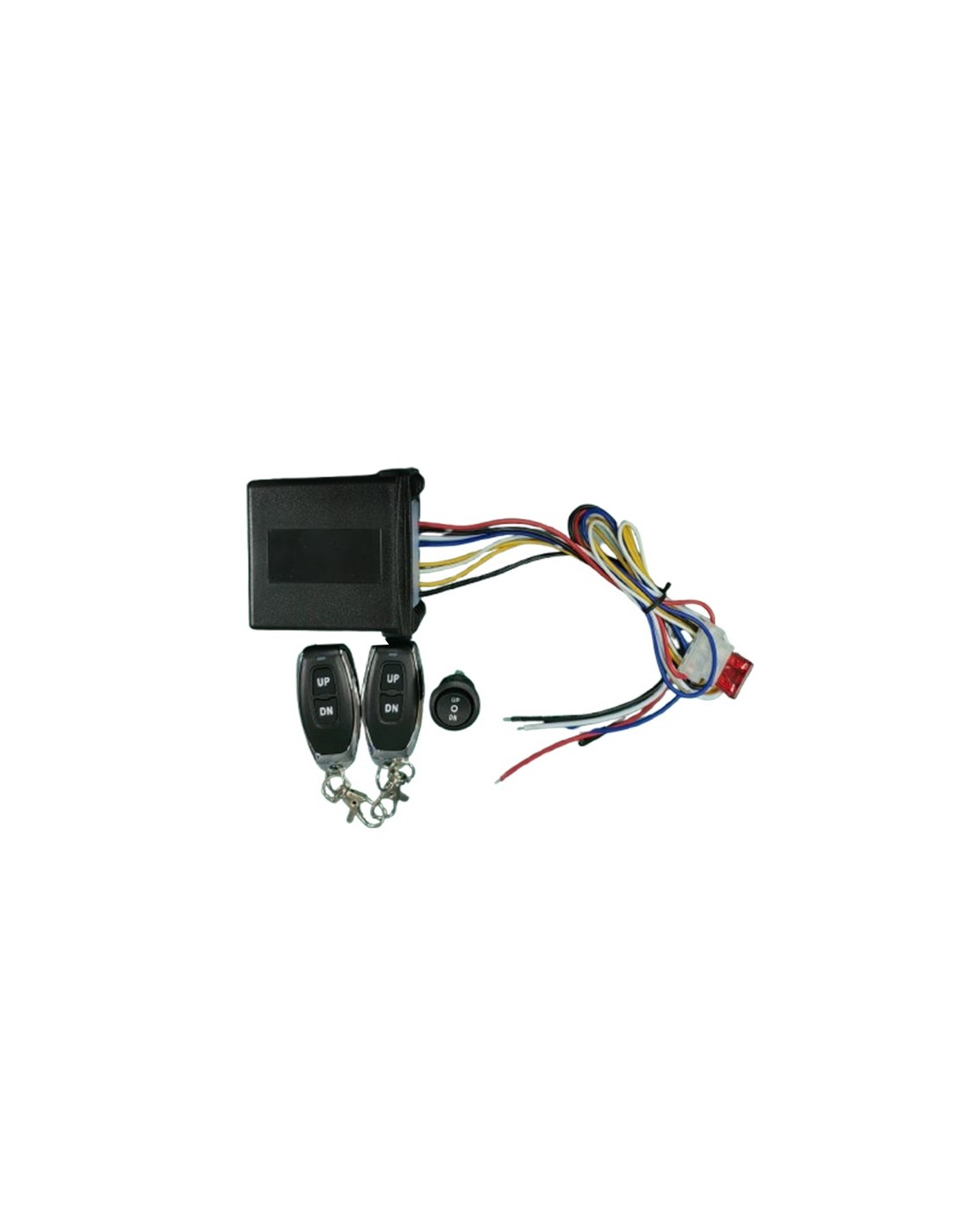

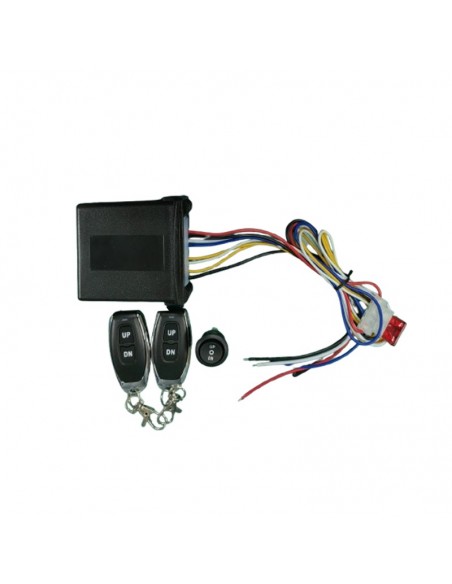

12 Volt remote control for electric actuator IP 66
12 Volt remote control for electric actuator IP 66
12 Volt remote control for electric actuator IP 66
12 Volt remote control for electric actuator IP 66

12 Volt remote control for electric actuator IP 66

Expedition sous 24h
€109.00
Tax excluded

Remote control box for 12 V electric actuator.

Frequency: 433.92MHz

Max current: 20A

Remote control: 50 meters

Temperature: -30° - 80°

 Waterproof IP66

CE, FCC certified

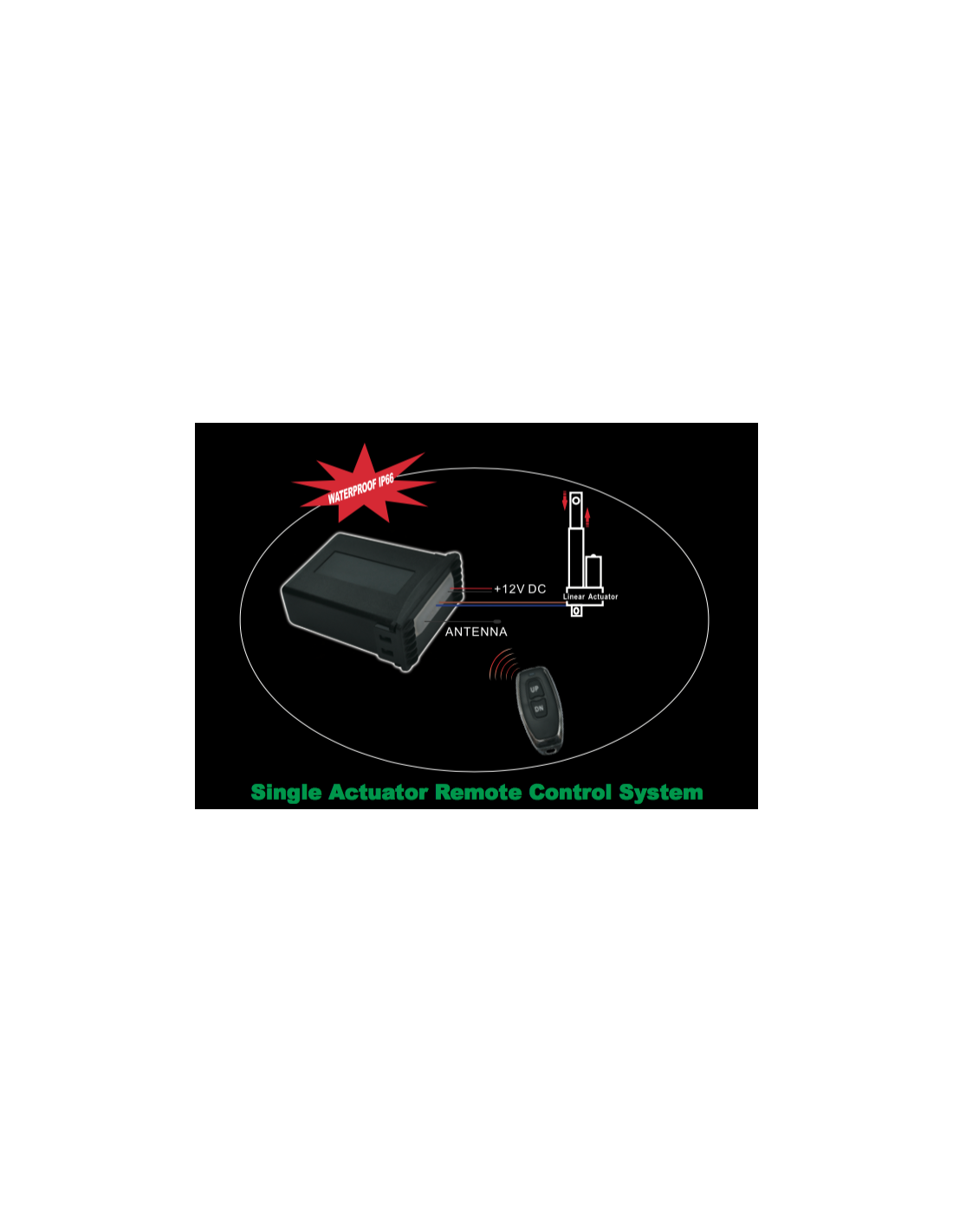

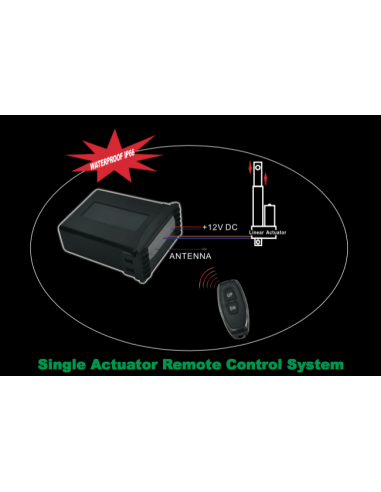

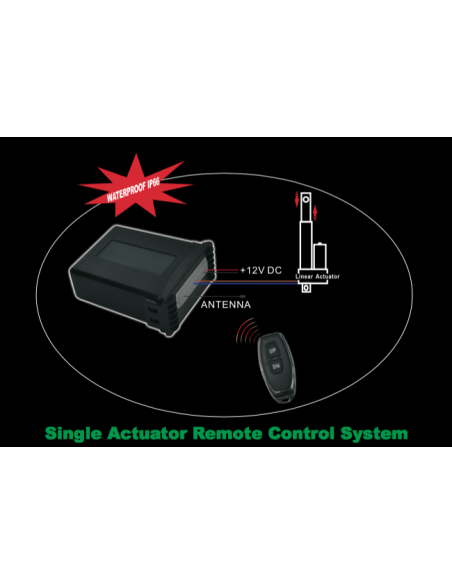

This kit which connects to a 12v power source (car/boat battery, etc.) will allow you to control your electric actuator.

Very easy installation, two plus and minus wires to be connected at the input and two at the output for the electric actuator.



The MPP-CS1 is our single channel control box for controlling a single actuator. Using the supplied remote control, users can extend, stop and retract the actuators from a distance of 15 meters. The control box has momentary and non-momentary capabilities as well as a fuse to  protect it against short circuits.
Using the included wiring harness, connect the linear actuator(s) to the control box. Apply 12VDC to the power leads and the system is now ready for use. It is important to ensure that the power supply has sufficient amperage to control the linear actuators. MPP-CS1 is designed to handle a maximum of 20A.
Please see the MPP-CS1 data sheet for information on controls, wiring, and troubleshooting. This unit is compatible with all of our linear actuators.

MPP-CS2-RSK-1
New
No reviews
