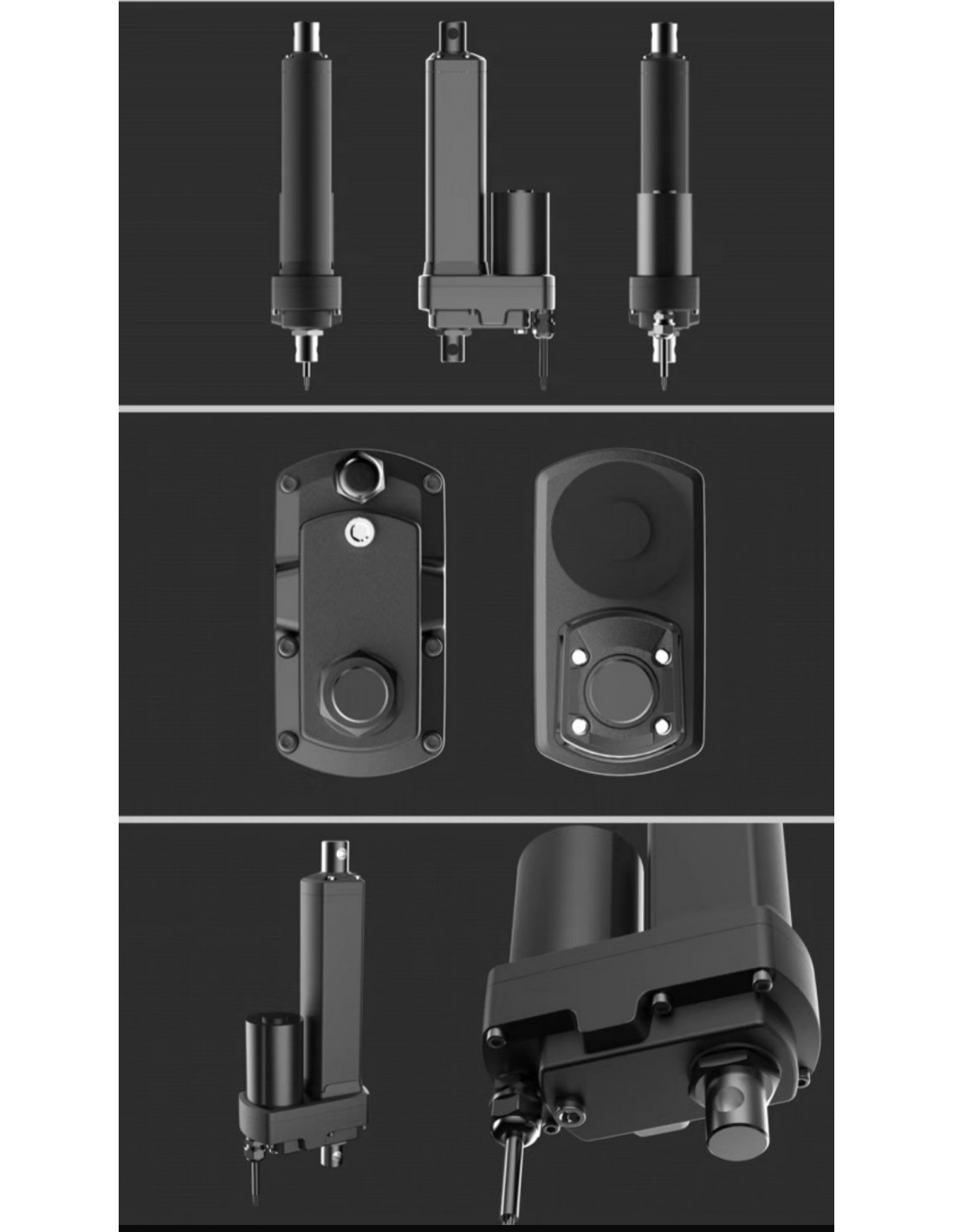

Vérin électrique 24v 10000 N MPP-ITEX

Name: Vérin électrique 24v 10000 N MPP-ITEX
Brand: MotionProPlus
SKU: MPP-SIP
Price: 500 EUR
Availability: PreOrder

Livraison sous 15 jours

€500.00

Tax excluded 15

Vérin industriel de très hautes résistance pour les environnement extrême. De classe Ip 66 il résistera à tout type de traitement extérieur.

Machines agricoles, Engins de chantier, btp, camions bateaux.

Course

Force

Vitesse

Volts

Quantity	Unit discount	You Save
5	5%	€125.00
10	10%	€500.00
20	15%	€1,500.00
50	20%	€5,000.00

Alimentation d'entrée	24V DC	Courant consommée à charge maximal :	3.4A
Course	De 50-1000 mm	Diamètres de la fixation:	13 mm
Force	10000 N /1000 Kg Static 13000 N	Motorisation	Bruched DC motor
Vitesse a vide	10 mm/s	Vis	ACME
Indice de protection	IP66	Matière de l'armature	6062 Aluminum
Température d'utilisation	-15C~+65C	Certification	CE
Bruit	db<45(A)	Cycle :	10%
Capteurs fin de courses	Oui(Pas adjustable)	Garantie	12 mois

Course

100

150

200

250

300

Longueur fermé (mm)

240

290

340

390

440

490

Poids (kg)

3.3

3.7

3.9

4.2

4.6

Conseil d’utilisation :

Connecter le fil rouge à une source positive et le fil noir à une source négative pour procéder à la rétractation, en échangeant les fils (de sorte que le noir va au positif et rouge négatif) vous obtiendrez une extension. Cet actionneur peut être exécuté à partir d'une batterie ou tout autre courant continu de 12 Volts ou 24 Volts.

Reference MPP-SIP

Condition New

EAN13 3760280460051
