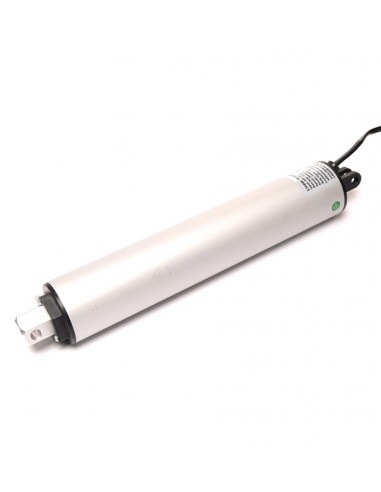

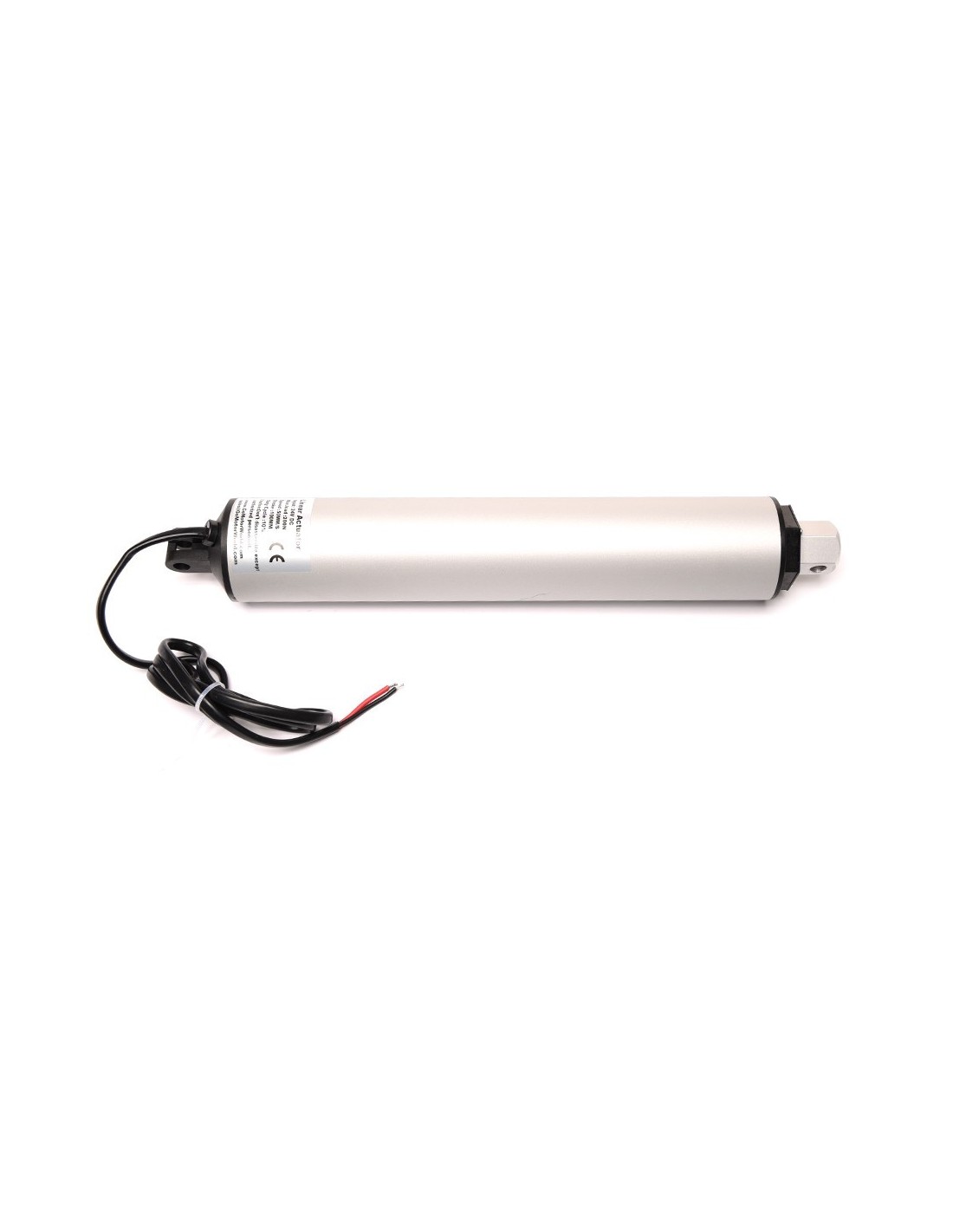

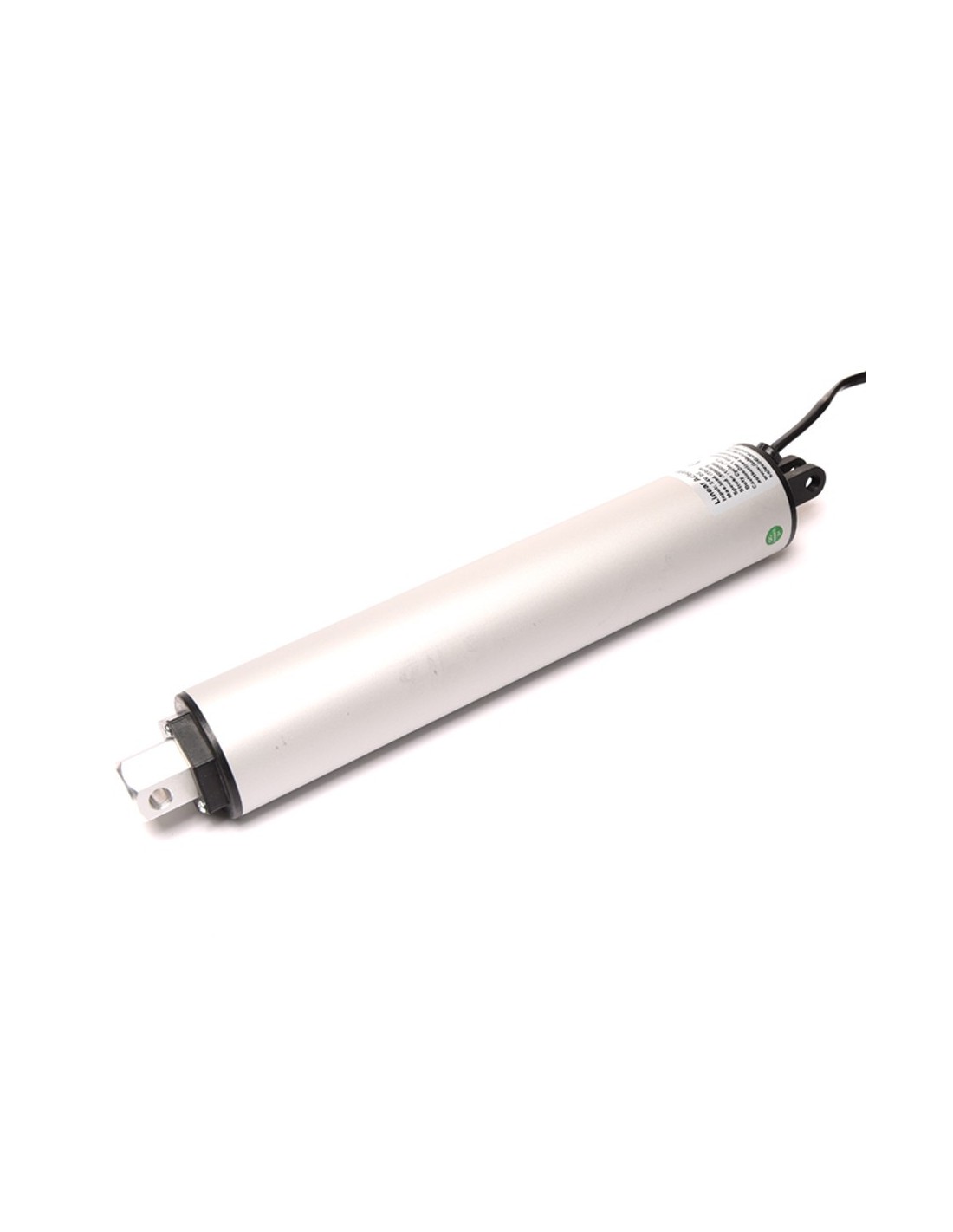

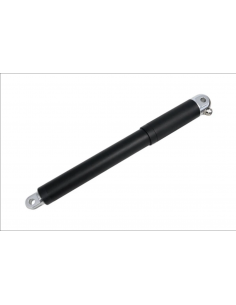

Linear actuator MPP-CCS 20 kg high speed cylindrical electric
Linear actuator MPP-CCS 20 kg high speed cylindrical electric
Linear actuator MPP-CCS 20 kg high speed...
Linear actuator MPP-CCS 20 kg high speed...

Linear actuator MPP-CCS 20 kg high speed cylindrical electric

Last items in stock
€129.00
Tax excluded

The MPP-CCS high speed linear actuator is the fastest unit in our product line.

The shaft housing (55mm)  and small outer diameter actuator stem provide an ideal unit for applications where space is limited.

Course
Force
Vitesse
Volts



nput power

12V / 24V DC

Current consumed at maximum load:

8A/4A

Course

The 30-1000 mm

Binding diameters:

8 mm

Force

200 N / 20 Kg

Static 200 N

Motorization

Bruched DC motor

Speed

50 mm/s

Screw

ACME

Protection sign

IP54

Frame material

6062 Aluminum

Operating temperature

-25C~+65C

Certification

THIS

Noise

db<45(A)

Cycle :

25%

Limit switches

Yes(Not adjustable)

Guarantee

12 months

Using advice :

Connect the red wire to a positive source and the black wire to a negative source to retract,

by swapping the wires (so black goes positive and red goes negative) you will get an extension.

This electric actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

Course

50

100

150

200

250

300

Closed length (mm)

287

335

385

435

485



535



Weight (kg)

1.52

1.63

1.74

1.86

1.95

2.05

Course

50

100

150

200

250

300

Longueur fermé (mm)

287

335

385

435

485



535



Poids (kg)

1,52

1,63

1,74

1.86

1.95

2,05

Conseil d’utilisation :

Connecter le fil rouge à une source positive et le fil noir à une source négative pour procéder à la rétractation,

en échangeant les fils (de sorte que le noir va au positif et rouge négatif) vous obtiendrez une extension.

Ce vérin électrique peut être exécuté à partir d'une batterie ou tout autre courant continu de 12 Volts ou 24 Volts.

MPP-CCS
No reviews

You might also like

Mounting braket for linear actuator MPP-SF5 Mounting braket for linear actuator MPP-SF5 2
En stock
mounting brackets

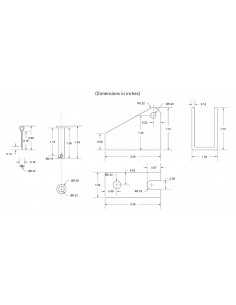

Mounting braket for linear actuator MPP-SF5

MotionProPlus
MPP-SF5-A
€6.90
Mounting braket for linear actuator. Very practical for opening a hatch for example. It supports a force of 250 kg for the light version compatible model MPP-EC or MPP-ECH MPP-CCS Two pieces are recommended at each end of your linear actuator.
12-24 V control kit for linear actuator 12-24 V control kit for linear actuator 2
Expedition sous 24h
Control systems

12-24 V control kit for linear actuator

MotionProPlus
MPP-CS22-A
€49.00
Remote control box for electric cylinder or linear actuator. This kit which connects to a 12v or 24 V power source (car/boat battery, etc.) will allow you to control your electric actuator. Very easy installation, two plus and minus wires connected at the input and two at the output for the electric cylinder.
View
Alimentation Vérins Alimentation Vérins 2
Expédition en 24h
Control systems

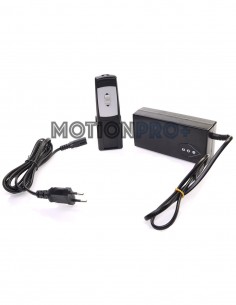

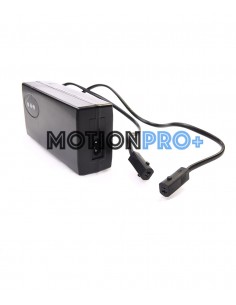

All in one 220V/12V or 24v power supply kit for Actuators

MotionProPlus
MPP-AL1
€74.92
This all-in-one control kit will allow you to connect your 12V electric actuator directly to a standard 220 V AC electrical outlet. Current: 2A (max 7A) Short circuit protection. Compatible only with the following 12 volt actuators: MPP-EC-12v MPP-ECH-12V MPP-MD-12V
View

Customers who bought this product also bought:

Spare remote control MPP Spare remote control MPP 2
Rupture de stock production de 15 jours nécessaire
Control systems

Spare remote control MPP

MPP-TEL
€29.00
Replacement remote control for the MPP-AL1, Mpp-AL2 and MPP-CS1 Kit. Available in two buttons or six buttons.
View
Mounting bracket for linear electric actuator MPP-SF6 Mounting bracket for linear electric actuator MPP-SF6 2
En stock
mounting brackets

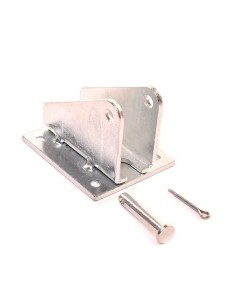

Mounting bracket for linear electric actuator MPP-SF6

MPP-SF6
€9.90
Mounting bracket for linear electric actuator. allows better fixation and stability. It supports a force of 250 kg for the light version compatible model MPP-EC Compatible with MPP-EC
Rocker Switch - Momentary 20A
En stock
mounting brackets

Rocker Switch - Momentary 20A

MPP-RS1
€14.92
This rocker switch is ideal to control linear actuators at a low cost. It is available in two models, one with momentary and one with non-momentary functionality. The momentary switch is spring-loaded, just press a button to extend or retract actuator. When the button is released the switch will spring back to off position.
Mounting braket for linear actuator MPP-SF5 Mounting braket for linear actuator MPP-SF5 2
En stock
mounting brackets

Mounting braket for linear actuator MPP-SF5

MotionProPlus
MPP-SF5-A
€6.90
Mounting braket for linear actuator. Very practical for opening a hatch for example. It supports a force of 250 kg for the light version compatible model MPP-EC or MPP-ECH MPP-CCS Two pieces are recommended at each end of your linear actuator.
Electric actuator MPP-EC 90kg 30 à 200 mm Electric actuator MPP-EC 90kg 30 à 200 mm 2
  • Online only
Expédition en 48 heures
Linear Actuators

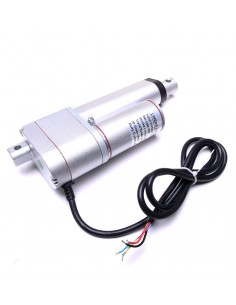

Electric actuator MPP-EC 90kg 30 à 200 mm

MPP-EC
€74.92
Axis measurement in closed axis: 105+stroke Axis measurement in open axis: 105 + stroke + stroke Example for a 100 mm stroke. The electric cylinder closed from axis to axis will be 205 mm and open 305 mm Weight: 1kg Linear actuator with electric motor and ACME screw. Equipped with built-in non-adjustable end-of-travel sensor at the start and end of the...
View
30mm 50 100 mm 150 mm 200 mm 250 mm
12-24 V control kit for linear actuator 12-24 V control kit for linear actuator 2
Expedition sous 24h
Control systems

12-24 V control kit for linear actuator

MotionProPlus
MPP-CS22-A
€49.00
Remote control box for electric cylinder or linear actuator. This kit which connects to a 12v or 24 V power source (car/boat battery, etc.) will allow you to control your electric actuator. Very easy installation, two plus and minus wires connected at the input and two at the output for the electric cylinder.
View
Alimentation Vérins Alimentation Vérins 2
Expédition en 24h
Control systems

All in one 220V/12V or 24v power supply kit for Actuators

MotionProPlus
MPP-AL1
€74.92
This all-in-one control kit will allow you to connect your 12V electric actuator directly to a standard 220 V AC electrical outlet. Current: 2A (max 7A) Short circuit protection. Compatible only with the following 12 volt actuators: MPP-EC-12v MPP-ECH-12V MPP-MD-12V
View
Heavy industrial electric actuator 700 kg MPP-IQ Heavy industrial electric actuator 700 kg MPP-IQ 2
Expedition sous 24 h
Linear Actuators

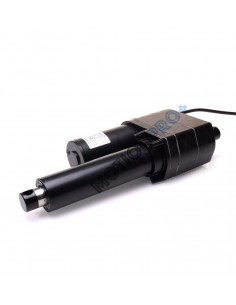

Heavy industrial electric actuator 700 kg MPP-IQ
