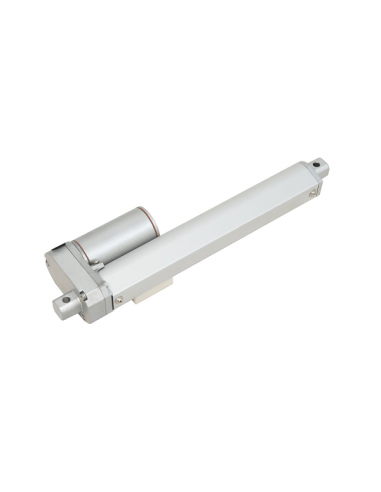

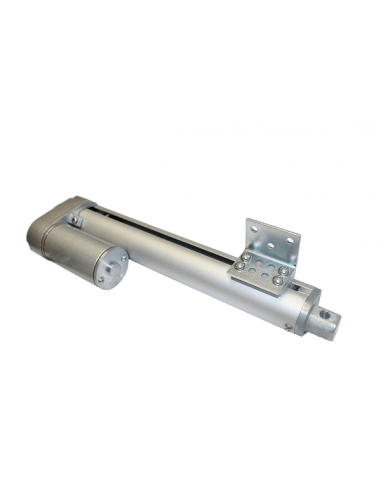

Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS
Linear actuator track 65 Kg sliding MPP-ECS

Linear actuator track 65 Kg sliding MPP-ECS

Last items in stock
€89.92
Tax excluded

Linear actuator with electric motor and ACME screw. Equipped with built-in non-adjustable end-of-travel sensor at the start and end of the run which allows the power supply to be stopped automatically. The change of direction by simply reversing the polarity of the applied voltage. (special switch available on our site) Stroke length can be customized on request as well as speed and force. Any increase in speed implies a loss of strength. ( inversely proportional)

Course
Force
Vitesse
Volts

Quantity Unit discount You Save
5 5% €22.48
10 10% €89.92
20 15% €269.75
50 20% €899.17


Input power

12V / 24V DC

Current consumed at maximum load:

5A/2.5A

Course

The 30-700 mm

Binding diameters:

6 mm

Force

650 N / 65 Kg

Static 2300 N

Motorization

Bruched DC motor

Speed

8 mm/s

Screw

ACME

Protection sign

IP20

Frame material

6062 Aluminum

Operating temperature

-20C~+65C

Certification

CE and RoHs

Noise

db<60(A)

Cycle :

25%

Limit switches

Yes(Not adjustable)

Guarantee

12 months

Course

50

100

150

200

250

300

Closed length (mm)

167

217

267

317

367



417



Weight (kg)

0.7

0.85

0.9

1

1.1

1.2

Using advice :

Connect the red wire to a positive source and the black wire to a negative source to retract,

by swapping the wires (so black goes positive and red goes negative) you will get an extension.

This electric actuator can be run from a battery or any other direct current of 12 Volts or 24 Volts.

MPP-ECS
New
3760280460266
No reviews

You might also like

Mounting braket for linear actuator MPP-SF5 Mounting braket for linear actuator MPP-SF5 2
Rupture de stock production de 15 jours nécessaire
mounting brackets

Mounting braket for linear actuator MPP-SF5

MotionProPlus
MPP-SF5-A
€6.90
Mounting braket for linear actuator. Very practical for opening a hatch for example. It supports a force of 250 kg for the light version compatible model MPP-EC or MPP-ECH MPP-CCS Two pieces are recommended at each end of your linear actuator.
12-24 V control kit for linear actuator 12-24 V control kit for linear actuator 2
Expedition sous 24h
Control systems

12-24 V control kit for linear actuator

MotionProPlus
MPP-CS22-A
€49.00
Remote control box for electric cylinder or linear actuator. This kit which connects to a 12v or 24 V power source (car/boat battery, etc.) will allow you to control your electric actuator. Very easy installation, two plus and minus wires connected at the input and two at the output for the electric cylinder.
View
Alimentation Vérins Alimentation Vérins 2
Expédition en 24h
Control systems

All in one 220V/12V or 24v power supply kit for Actuators

MotionProPlus
MPP-AL1
€74.92
This all-in-one control kit will allow you to connect your 12V electric actuator directly to a standard 220 V AC electrical outlet. Current: 2A (max 7A) Short circuit protection. Compatible only with the following 12 volt actuators: MPP-EC-12v MPP-ECH-12V MPP-MD-12V
View
Linear actuator MPP-MD 300 Kg Linear actuator MPP-MD 300 Kg 2
Last items in stock
Linear Actuators

Linear actuator MPP-MD 300 Kg

MotionProPlus
MPP-MD
€169.92
This industrial quality electric cylinder / linear actuator is perfect for all your applications requiring industrial reliability. It will be able to move a load of 300 kg at a speed of about 10 mm/s. It is ideal for replacing traditional hydraulic or air pressure in many aspects such as seat lifting, in boats, in all industrial elements in furniture, in...
View
50 100 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 500 mm 600 mm 700 mm 800 mm 1000 mm
Power supply and control KIT for two linear actuaors Power supply and control KIT for two linear actuaors 2
Livraison sous 15 jours
Alimentations électriques

Power supply and control KIT for two linear actuaors

MotionProPlus
MPP-AL2
€79.90
This complete all-in-one control kit will allow you to connect your 12V electric actuator directly to a standard 220 V AC electrical outlet. It will allow you to connect two 12 volt actuators to a 220V socket and control them one by one but also both at the same time. However, synchronization is not guaranteed and, depending on the jacks, offsets of plus...
View
Vérin électrique 24v 10000 N MPP-ITEX
Livraison sous 15 jours
Linear Actuators

Vérin électrique 24v 10000 N MPP-ITEX

MotionProPlus
MPP-SIP
€500.00
Vérin industriel de très hautes résistance pour les environnement extrême. De classe Ip 66 il résistera à tout type de traitement extérieur. Machines agricoles, Engins de chantier, btp, camions bateaux.
View
50 100 mm 200 mm 300 mm 400 mm 500 mm 600 mm

Customers who bought this product also bought:

RSP-320-24 320W Integrated Switching Power Supply
En stock
Alimentations électriques

RSP-320-24 320W Integrated Switching Power Supply

RSP-320-24
€61.00
Mean Well Switch Mode Power Supply The Mean Well RSP-320 Integrated AC/DC Switching Power Supply single output 321.6 W is rated at 13.4 A output at 24 VDC. It has a universal input supply voltage of 88 to 264 VAC and 124 to 370 VDC Power supply is 40% smaller than corresponding models. The ambient temperature ranges from 30°C and 50°C under full load...
Power supply and control KIT for two linear actuaors Power supply and control KIT for two linear actuaors 2
Livraison sous 15 jours
Alimentations électriques

Power supply and control KIT for two linear actuaors

MotionProPlus
MPP-AL2
€79.90
This complete all-in-one control kit will allow you to connect your 12V electric actuator directly to a standard 220 V AC electrical outlet. It will allow you to connect two 12 volt actuators to a 220V socket and control them one by one but also both at the same time. However, synchronization is not guaranteed and, depending on the jacks, offsets of plus...
View
12-24 V control kit for two electric linear actuators 12-24 V control kit for two electric linear actuators 2
Rupture de stock
Control systems

12-24 V control kit for two electric linear actuators

MPP-CS22-B
€55.00
Remote control box for electric cylinder or linear actuator. This kit which connects to a 12v or 24 V power source (car/boat battery, etc.) will allow you to control your electric actuator. Very easy installation, two plus and minus wires connected at the input and two at the output for the electric cylinder.
View
Mounting bracket MPP-SF5-B Mounting bracket MPP-SF5-B 2
En stock
mounting brackets

Mounting bracket MPP-SF5-B

MPP-SF5-B
€6.90
Fixing support for linear electric cylinder. Very practical for opening a hatch for example. It supports a force of 300 kg for the MPP-MD model. Two pieces are recommended at each end of your linear actuator. COMPATIBLE with the MPP-MD actuator.
Linear actuator MPP-EC 90 Kg Linear actuator MPP-EC 90 Kg 2
Expédition en 48 heures
Linear Actuators

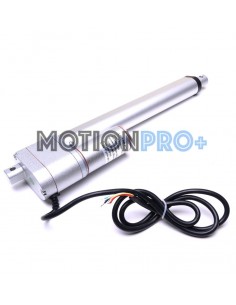

Linear actuator MPP-EC 90 Kg
