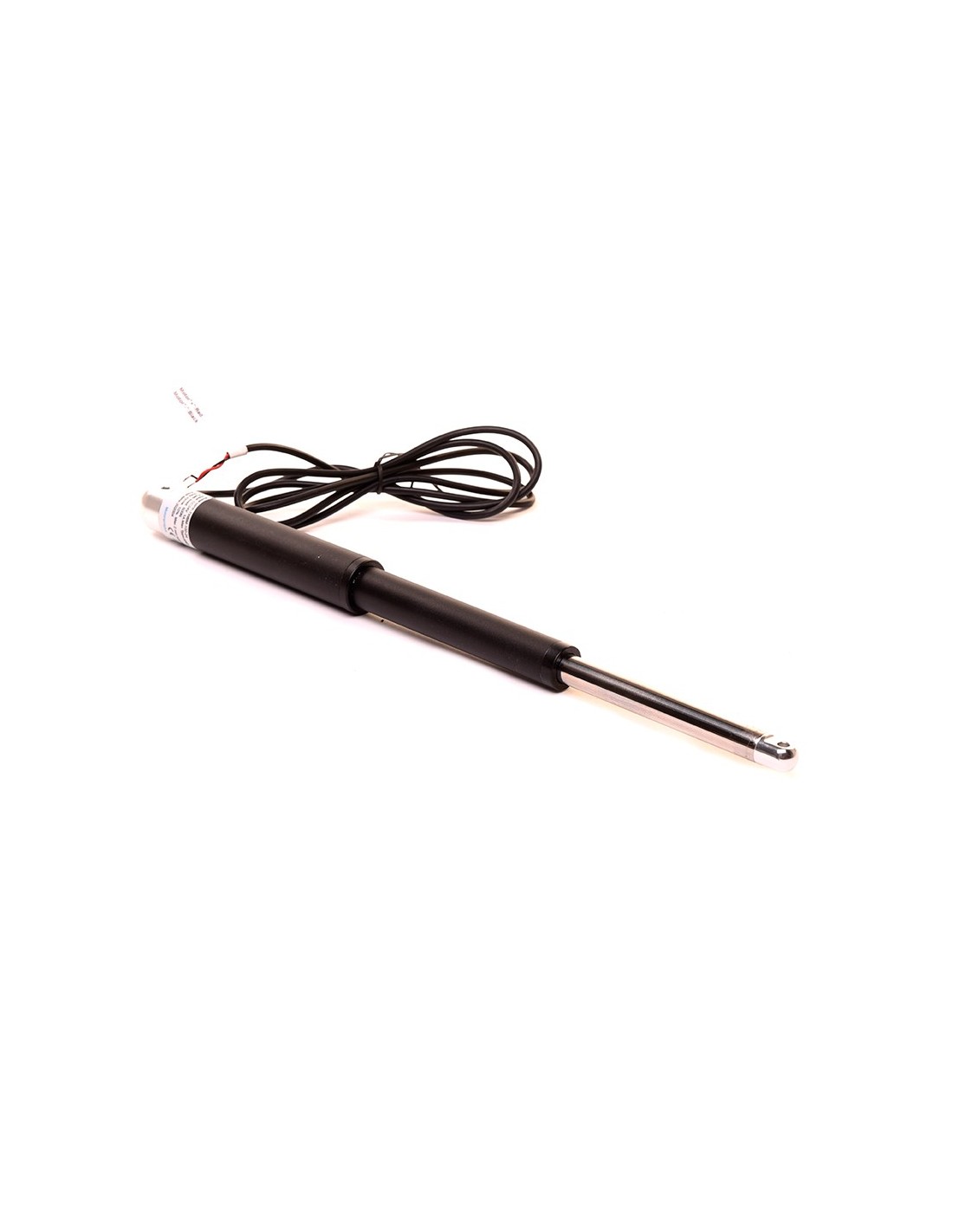

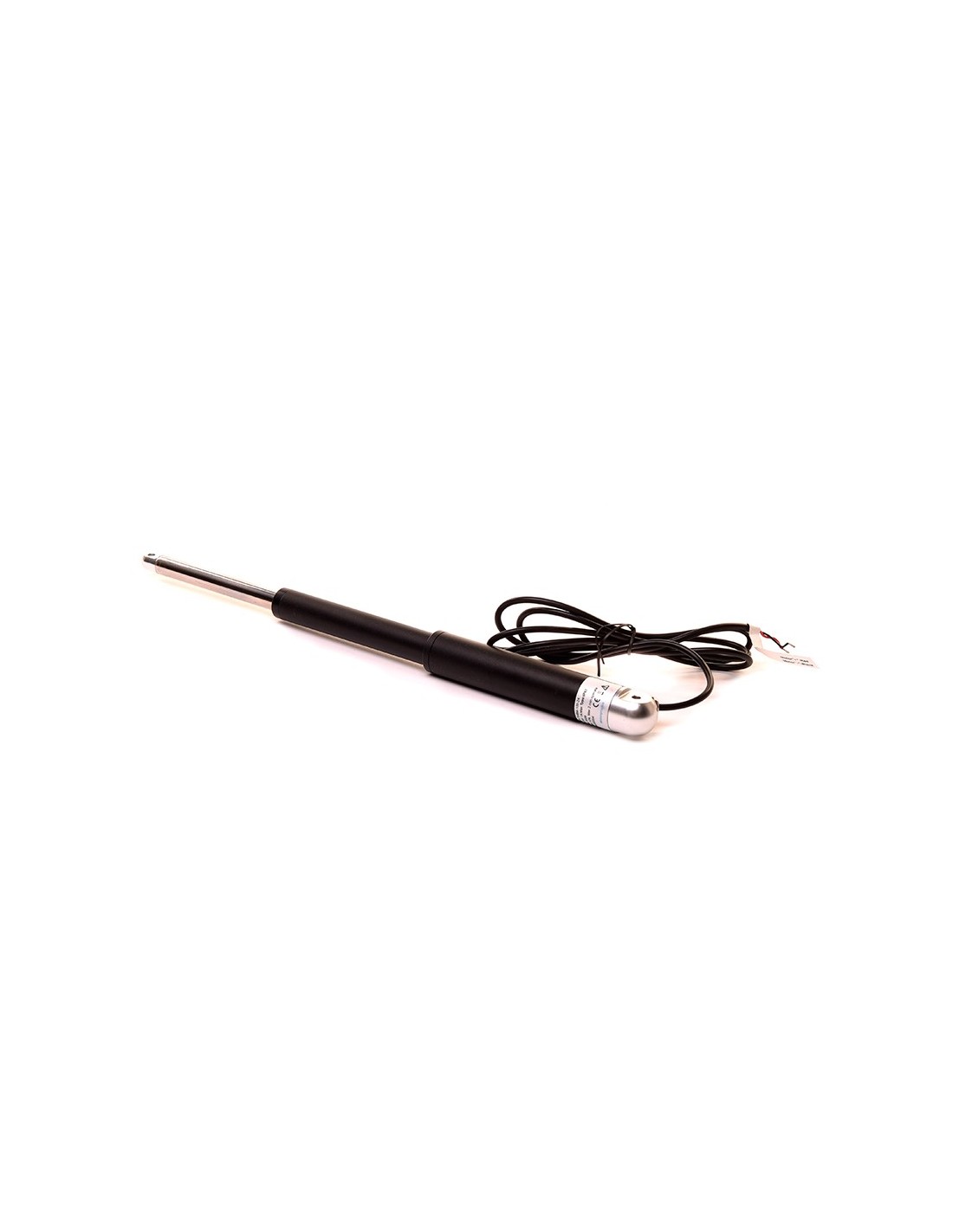

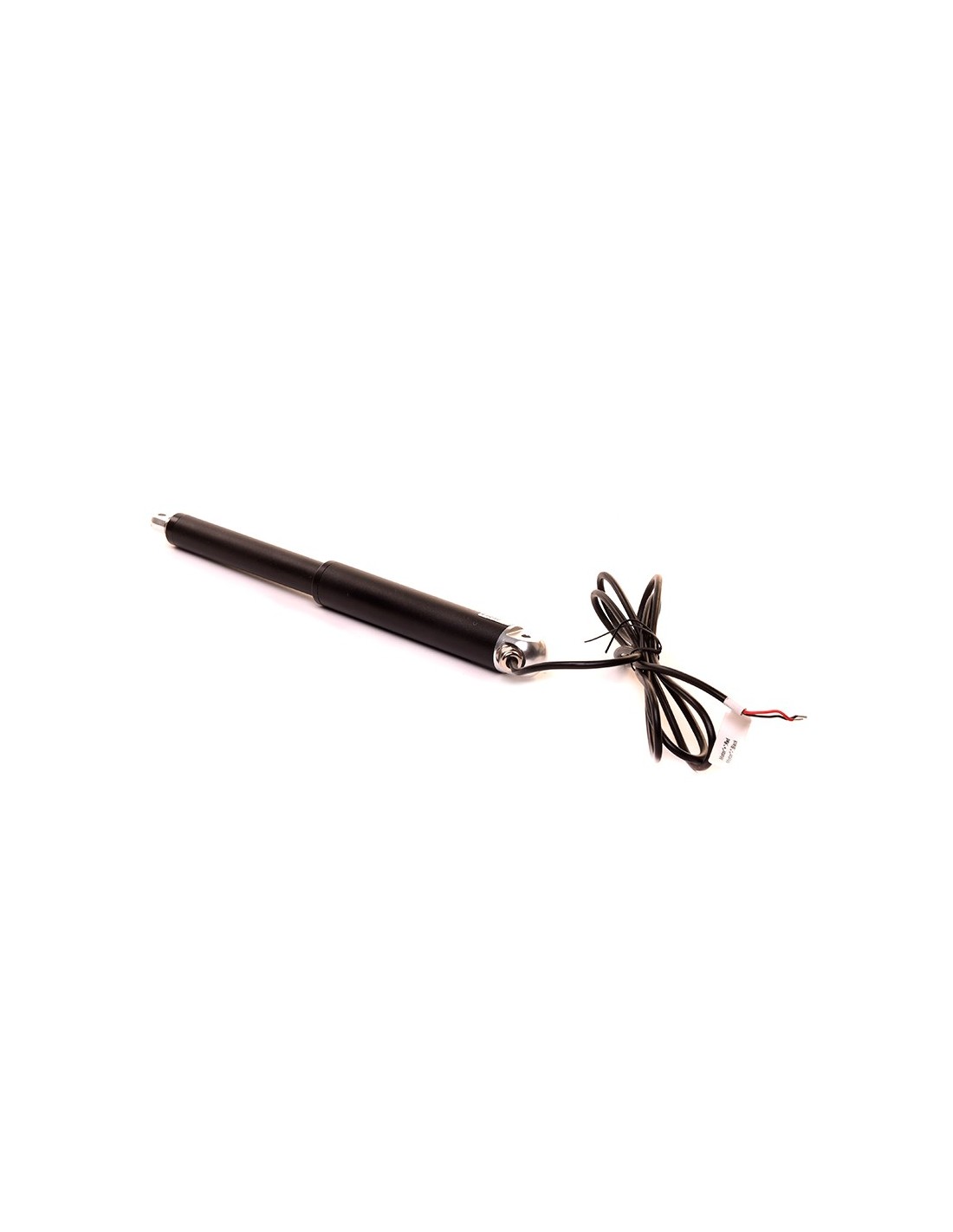

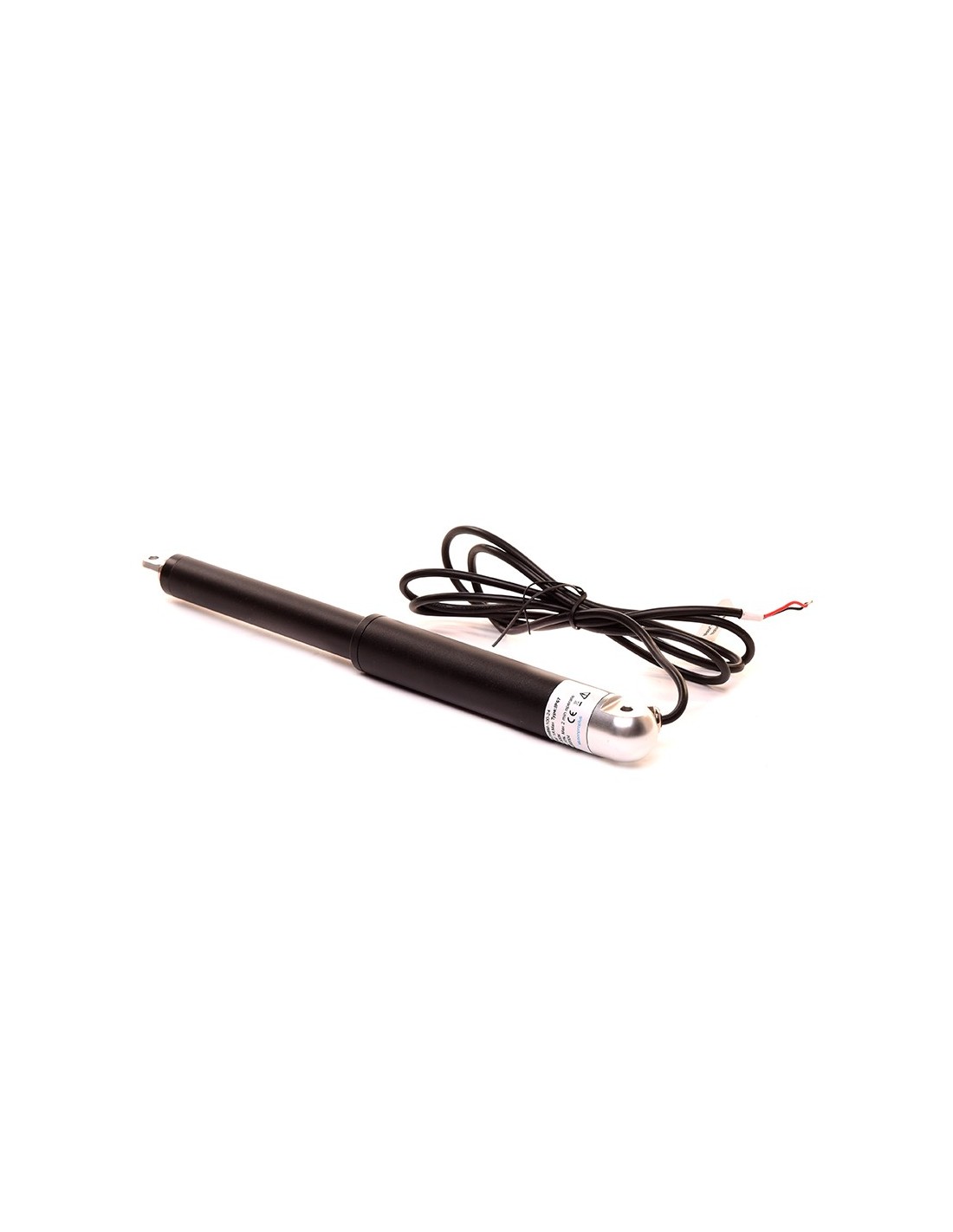

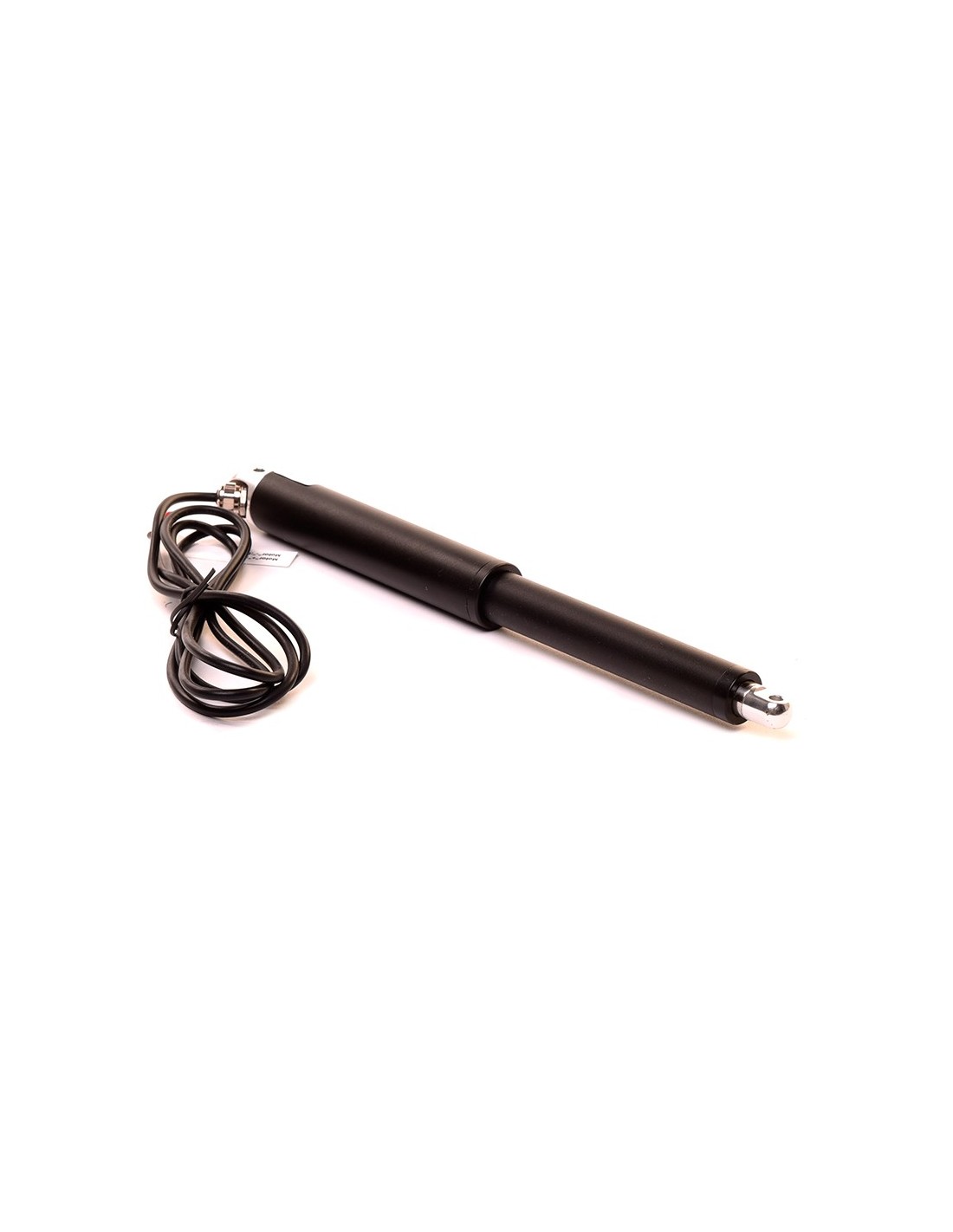

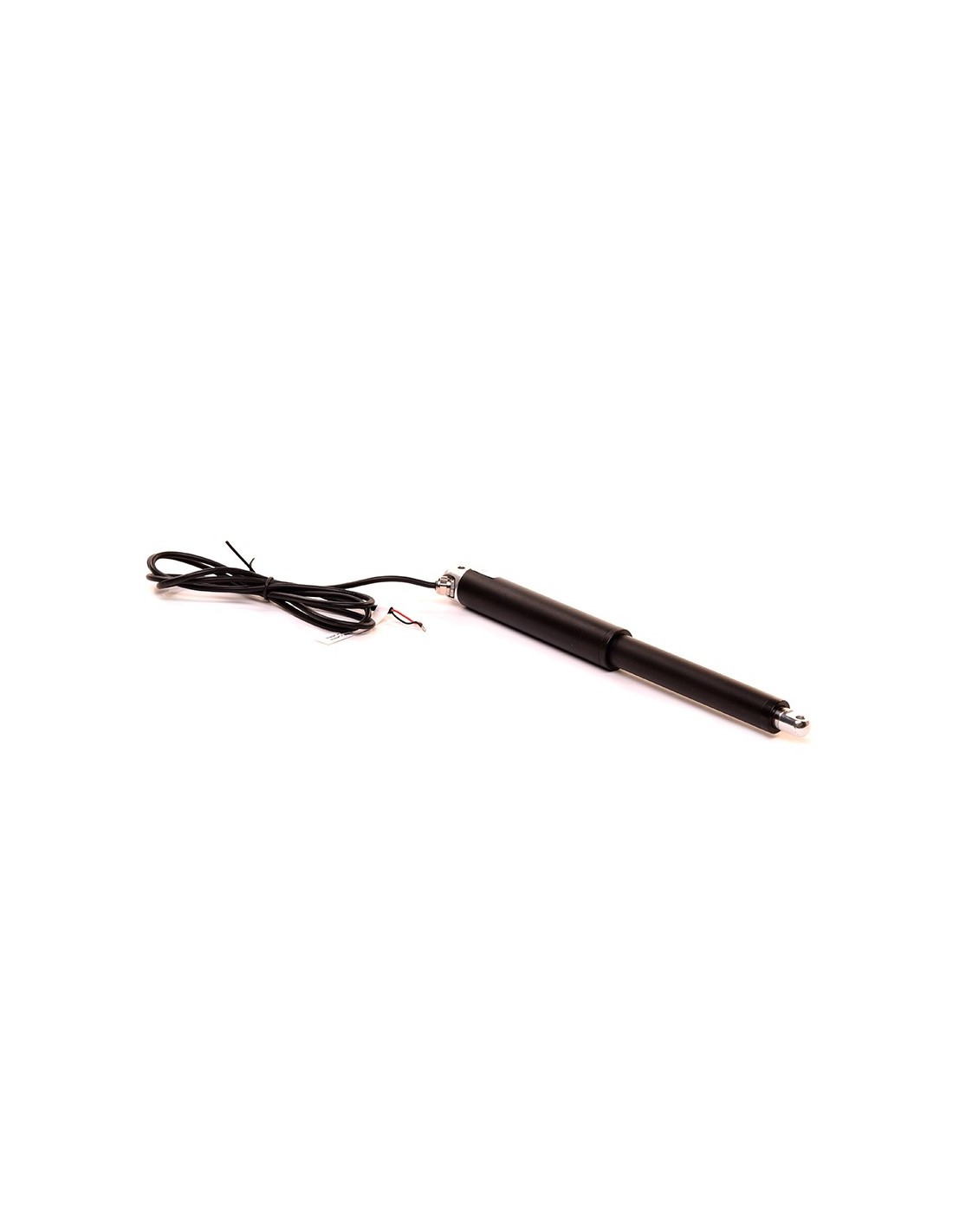

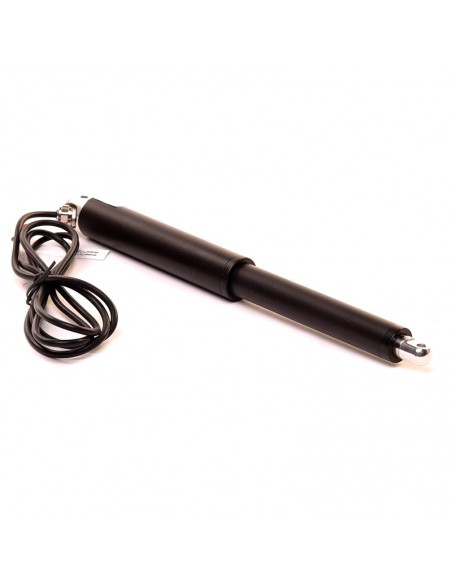

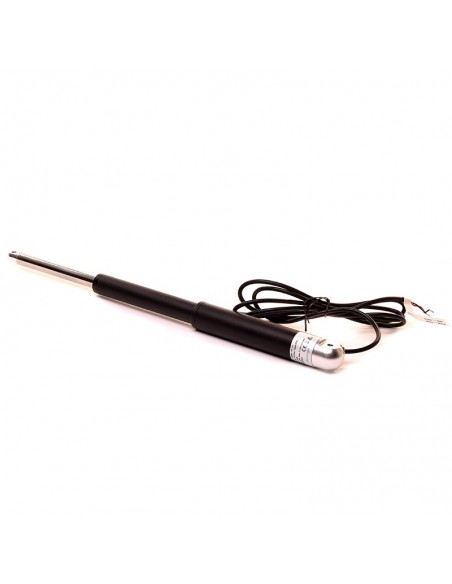

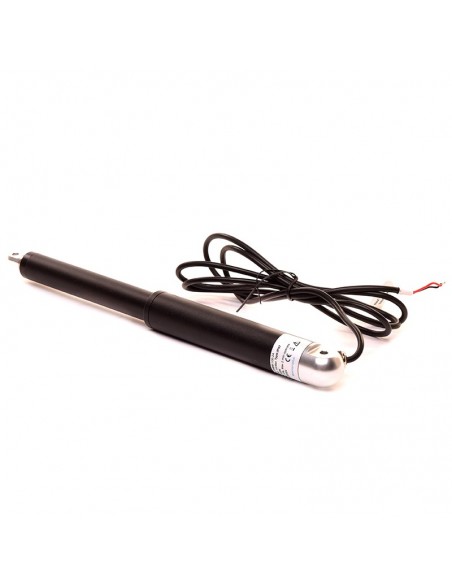

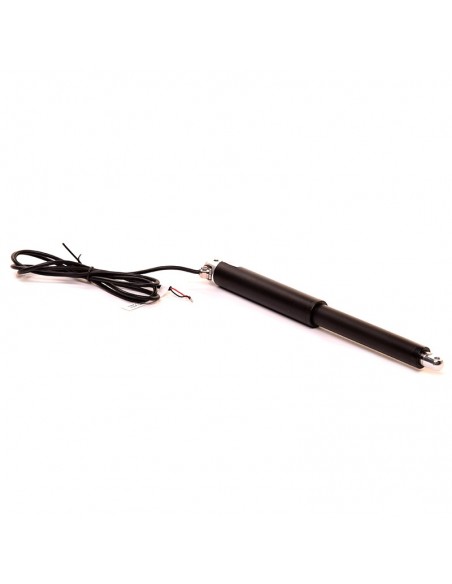

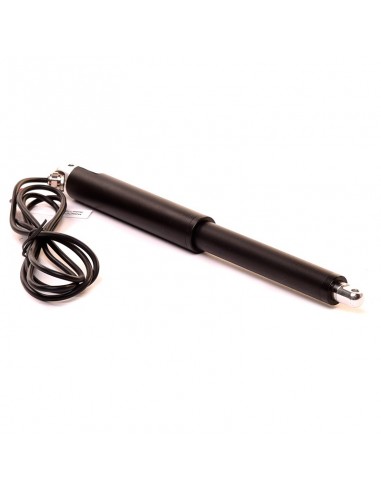

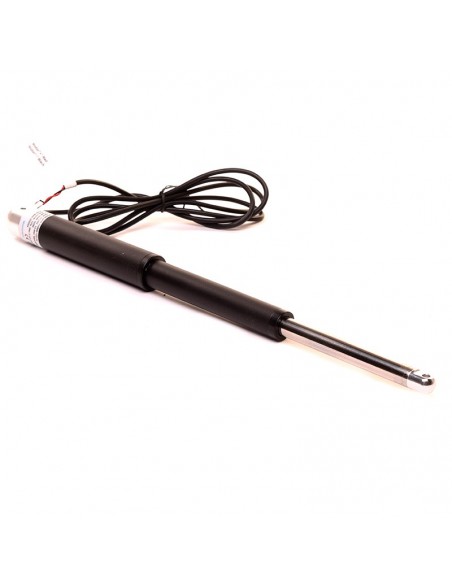

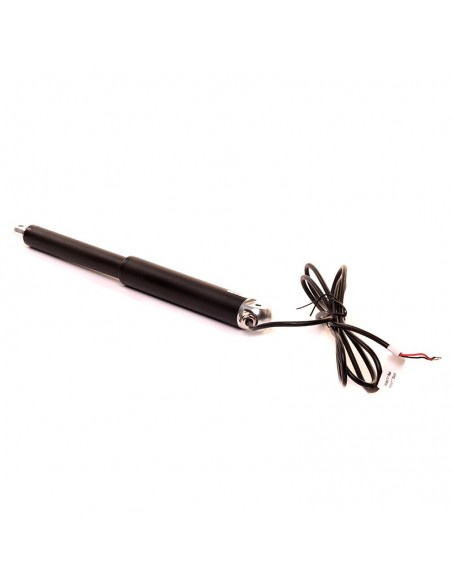

Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67
Linear actuator cylinder MPP-TW26 50 kg IP67

Linear actuator cylinder MPP-TW26 50 kg IP67

1 Reviews
Production et livraison en 15 jours
€179.00
Tax excluded Production et livraison en 4 semaines

Small linear actuator cylinder with a force of 500 N.

IP67 index which allows it temporary immersion under water.

This linear actuator is a good alternative to hydraulic and pneumatic systems.

With its IP 66 protection it can be used without problems in outdoor applications.

Its weight between 0.35 grams and 0.5 grams allows it to be used in bulk without increasing the final weight of the application too much.

Course

50

100

150

200

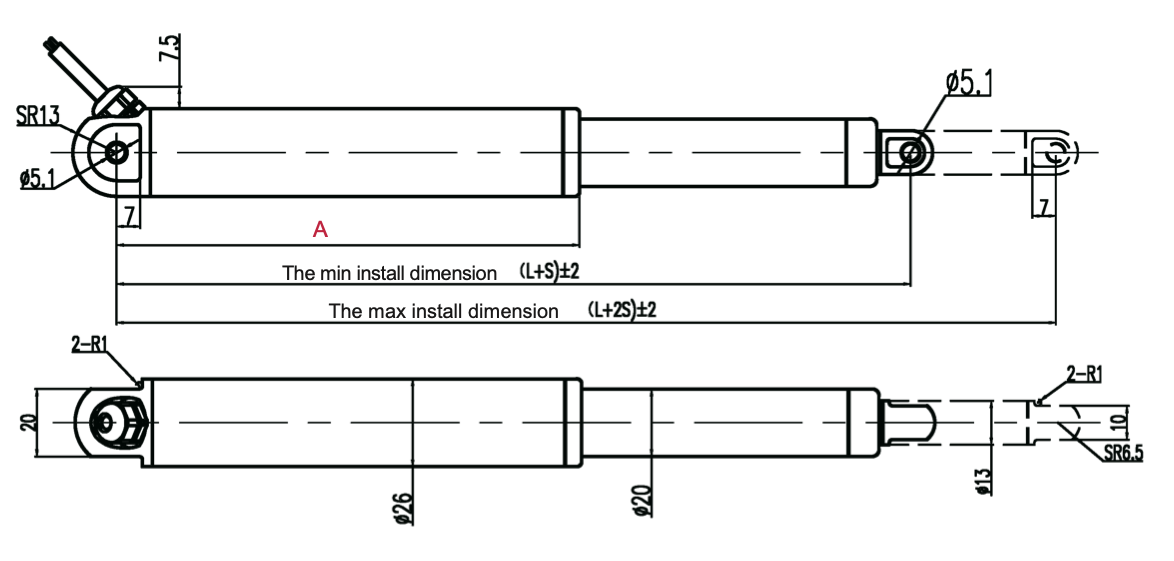

Closed length (mm)

220

270

320

3 70

Weight (kg)

0.35 _

0.4 _

0.45 _

0.5 _
Course
Force
Vitesse
Volts





Input power

12V/24V

Current consumed at maximum load:

1.4/ 0.7

Course

The 50-200 mm

Max Power

30 W.

Force

500N

Motorization

Bruched DC motor

Speed

 5mm/s

Screw

Trapezoid

Protection sign

IP66

Frame material

Piston material

6063 Aluminum

316 inoxidable steel

Operating temperature

-20C ~ +60C

Certification

THIS

Noise

db<65(A)

Cycle :

Work 2 minutes

rest 18 minutes

Limit switch

Yes / No adjustable,

Guarantee

18 months

Lifetime

10000





MPP-TW26
New
3760280460273
1 Reviews
Very good quality
Perfect
By Taoufik on 05/13/2022
